Wall Thickness Calculation of Hemispherical Head Under Internal Pressure

  ASME Section VIII Div 1 - UG 32 - Formed Head, and Sections, Pressure on Concave Side
  UG-32(e) Hemispherical Heads

    (Enter values in yellow cells for calculations)
  DATA INPUT

    Design Conditions     Material
    Design Pressure, Pd =  barg Head Material Specification (1 to 7)


    Design Temperature, Td =  °C Allowable Stress Head, S =  MPa

    Welding Efficiency, E =
  Dimensions
    See Table UW-12     Inside Diameter, Di =   mm
    Corrosion Allowance, CA =  mm
          Nominal wall thickness before forming (8), tn =
 mm

          Minimum specified thickness after forming (9), tf =  mm
          Minimum required thickness after forming, tr =  mm

          Outside Diameter, Do =  mm

          Check If tr ≤ tn
    Notes:     Check If tr ≤ tf
  (1) S ≤ 66.66% of σy @ temp.
  (2) S > 66.66% but < 90% of σy @ temp.
  (3) t ≤ 65
  (4) 65 < t ≤ 100
  (5) 100 < t ≤ 150
  (6) Tensile strength of the Section IX reduced section tension test is not less than 690 MPa.
  (7) Tensile strength of the Section IX reduced tension test less than 690 MPa but not less than 655 MPa.
  (8) It is recommended a nominal thickness before forming 15% higher than the minimum specified thickness to ensure after forming thickness is above it.
  (9) As per UG-79 (d)(3) The reduction in weld thickness after forming shall not exceed 1/32 in. (1 mm) or 10% of the nominal thickness of the adjoining surface, whichever is less.


  CALCULATIONS

    Hemispherical Head

    Thickness after forming adjusted for corrosion, nt =  mm   nt = tf-CA

    Inside spherical or crown radius adjusted for corrosion, L =  mm   L = Di/2 + CA

    Wall Thickness [ASME UG-32(e)]
    Minimum required thickness after forming, t =  mm   t = P L
            2 S E - 0.2 P

    Minimum required thickness after forming, tr =  mm   tr = P L + CA
            2 S E - 0.2 P

    Check If tr ≤ tf

    Maximum allowable working pressure  [ASME UG-32(e)]
    Maximum allowable working pressure for Hemispherical Head, MAWP =  barg   MAWP = 2 S E nt
            L + 0.2 nt

    Check If MAWP ≥  P

    Check
    Limitations: tr < 0.356L or P <  0.665 SE tr < 0.356L
      P <  0.665 SE

    Volume =  m³   V = ( π Di³ ) /  10⁹
            12

    Weight =  Kg   V = (( π (Do³-Di³) ) / 10⁹) ρm
            12





  RESULT

    Design Conditions

    Design Pressure, Pd =  barg
    Design Temperature, Td =  °C

    Material
    Head Material

    Dimensions
    Outside Diameter, Do =  mm
    Nominal wall thickness before forming, tn =  mm
    Thickness after forming, tf =  mm
    Inner Diameter, Di =  mm

    Maximum allowable working pressure, MAWP =  barg
    Volume =  m³
    Weight =  Kg




    Discussion and References
    Information about Wall Thickness Calculation of Hemispherical Head Under Internal Pressure
    ASME Section VIII Div 1 paragraph UG-32(e)
    Standards, Paragraph & Appendix
  - ASME BPVC.VIII.1  Rules for Construction of Pressure Vessels
  - ASME BPVC SEC II-D Material Properties
  - ASME Section VIII Div 1 paragraph UG-32  Formed Heads, and Sections, Pressure On Concave Side

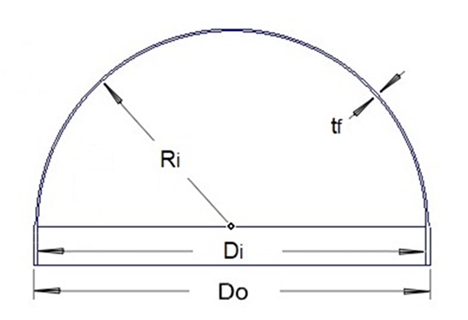

    Hemispherical Head











    Minimum required thickness [ASME VIII.1 UG-32(e)]
      t = P L
      2 S E - 0.2 P
    Internal design pressure [ASME VIII.1 UG-32(e)]
      P = 2 S E t
      L + 0.2 t
    Where:
    P: Design Pressure, in barg (psig)
    L: Inside spherical or crown radius, in mm (inches)
    S: Allowable Stress, in MPa (psi)
    E: Welding Efficiency
    t:  Minimum required thickness of head after forming, in mm (inches) (*)
    (*) Required thickness (t) under pressure on the concave side according to UG-32
    Feactures
    - Required thickness (t) under pressure on the concave side according to UG-32
- Most perfect geometric shape.
- Used to support critical pressures.
- Limitations: t ≤ 0.356 L, P ≤ 0.665 SE.
